Features:

  • Universal Heavy Duty Outdoor Wall Bracket. Fits 9000-36000 Btu Units. Dimensions: Width: 33.5" Height: 18" Depth: 22"
  • Adjustable for use with up to 9,000 - 36,000 BTU Units not exceeding a maximum weight capacity of 350 lbs. It includes hardware and expansion bolts for wall mounting
  • The use of mounting brackets raises the condensing unit above ground level for multi-floor mounting. As an alternative to ground level pads, some consumers find the use of mounting brackets useful for greater placement versatility and greater protection from dirt, snow, debris, floods, vandalism, etc.

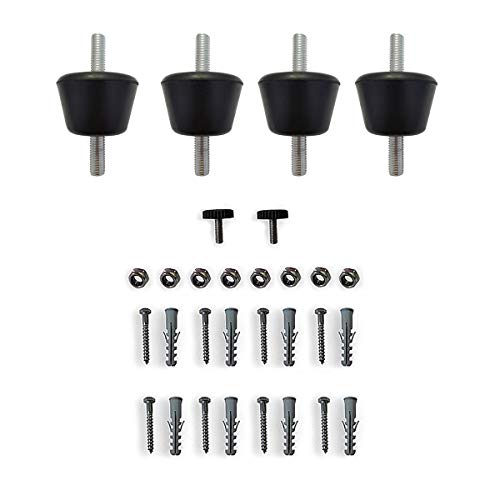

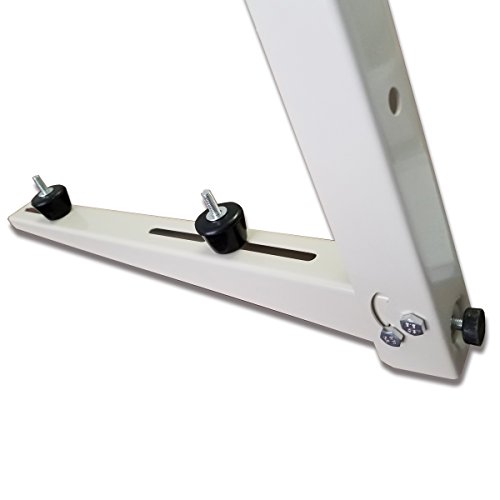

  • Cross bar, Two L-shaped brackets (foldable), Each arm has two upgraded 8.8 grade bolts with lock nuts, Wall fixation kit, Anti-vibration feet ungraded to 1 1/4 inches tall
  • Slight rearward tilt to wall is recommended for safety purposes. Bracket is designed for masonry wall mount, for stud wall mount proper blocking must be made between studs to insure proper wall bracing will accommodate bracket weight load. Requires 1/2 inch (12 mm) bit.
Easy install

I like to take my time and do my own installing since I have never been able to pay someone and get 100% satisfaction. This wall bracket is a very straight forward install. I did remove the drywall from the inside wall and add blocking which is just putting a 2x4 horizontal between the vertical studs in the wall to tie then together from bowing with the added weight. Since my mounting is on a 2x4 wall and did not align with the stud I add a stud and then add the horizontal blocking and nailed then together so it is a very solid mounting. On the outside, I have vinyl siding and it did not get crushed which was one of my concerns when I mount the 36K BTU unit. My wife helped me place it on the bracket and it is very easy to adjust. I bought two (2) of these brackets for my two (2) 36k BTU Mr. Cool Mini-splits. I will mount the other this summer when I have the time.

This bracket I HIGHLY recommend or one similiar

I just purchased and had installed a mini-split system. This bracket I HIGHLY recommend or one similiar. The main reason is it gets the AC unit off the ground. This is important to avoid grass clippings and other debris getting in the bottom of the unit and helping to corrode it. Even my central AC unit I poured a 8" tall slab to get it up off the ground. That sucker has a clean base and after many years it still looks new.

Easy, clean install

Product was easy to install, very sturdy and well made. Good quality paint job , the color matched my unit perfectly. Appreciate the fact that all the necessary mounting hardware was included. A good value for the money. Looks like it will hold up well.

An excellent wall bracket!

We used this wall bracket for the exterior unit of a mini-split AC/Heating unit. This wall bracket is much nicer than we expected it to be! It is quality, heavy duty construction and has a nice paint job. It is easy to install, and VERY strong. You will not be disappointed!

Simple, straightforward, rugged bracket.

This mounting bracket was easy and intuitive to install. I used it to mount a MrCool DIY unit. It has a nice powder coated finish that will likely hold up for a long time. The hard rubber spacers were a great feature – they seem to absorb any excess vibration from the condenser unit. It would be nice if the included hardware were stainless steel rather than standard zinc plated, but that's not a deal breaker. Well worth the price.

Not intended for frame walls.

I did not use this. I ended up using a ground pad. These wall mounts are sufficient to hold a mini split unit in a concrete or block wall; they are not really meant for frame wall. Vibration will transfer through a frame wall when the unit is running, so it would be noisy.

Well Made Bracket

This bracket is made of good steel. This product is easy to install. I used it to mount a 24,000 BTU mini split compressor. The company is very fast and helpful with information. This is a great company to work with. Thank you!

It's really strong!

Was easy to put up once we had the correct cutter for our concrete wall (not stucco-actually concrete), We set it at a height for a husband and wife team to put a mini split on top of. Easy peasy for an average handy man, didn't need any extra help. Shipping was fast and it came quickly. There is a little bono for a review afterwards - like a $5.00 gift card, but I'd give you an honest assessment either way.

Excellent quality product!

This product is excellent quality and easy to assembly. Supports my 24,000 BTU condenser unit and matches the siding on the outside wall of the house. I bought two of the mounting supports for two 24K BTU condenser units. Love this product and received it on time from the seller! Thank you

Sturdy Bracket

I just installed the bracket on my wife's "woman cave" I'm building her. Since it is new construction I was able to beef up the wall a bit by adding 2x4s between the studs. It's a heavy duty bracket and comes with all the hardware necessary for installation.
