Features:

  • So many needed accessories included: 1 x Quad Splitter, 6 x BNC Female Connectors, 1 x Remote control, 1 x Power adapter, 1 x User Manual.
  • Full screen display for each channel, Automatic display by turn mode. Switch between NTSC and PAL system. Picture In Picture show, PIP position switched (top left, top right, bottom left, bottom right corner).
  • Full-time Color display by Four-screen, three-screen, two-screen, and can be switched to splited by up and down, or right and left.
  • High-Resolution Picture show, Adjust individual resolution indepently. High-quality Screen Freeze function.
  • Memory function when powered off. After powered on, the picture remains the Last Status set before, it's Time-Saving and More Convenient.
switch from PAL to NTSC made easy and love your unit.

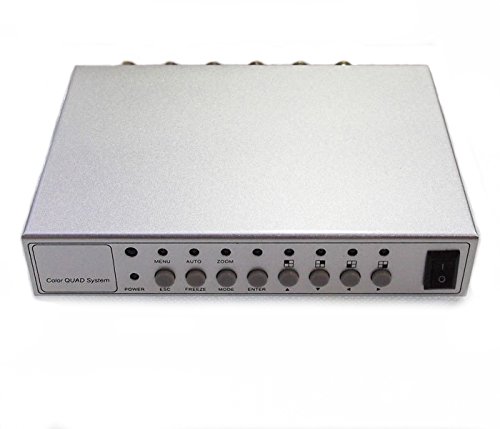

Easy to install, but comes in Pal mode need to switch to NTSC mode, use directions below to make it really easy,. Picture didn't copy, but the right arrow is on the front of the unit with the symbol of the lower left screen selected with the right arrow under it and you will be all set. make sure unit is unplugged from the power supply. To change the unit to NTSC, hold down the Right Arrow on the front of the unit while plugging in the power supply. An audible beep will indicate that it is set to the selected mode.

Make sure to configure from PAL to NTSC - works great!

This is a very common video processor, you can purchase the exact same unit in either black, white or grey and a unique brand. Pros: - Included an AC (120v) adapter - Included 6 BNC adapters (the same unit from other sellers do not include these) - Remote and all buttons function - Works on 12v (I wired this unit with a 12v adapter) Cons: - Arrived in PAL configuration (image was cut in half, black and white) > Configured to NTSC in an easy to use menu - problem solved (works perfectly) - The remote could be more responsive

Have some of these that are 6+ years old and still going strong

Very good units that do what they say. We use these to place four camera views on one large monitor. Have been using these for more than six years and have only had one failure in all that time. You might need to change the default video format when first installing but just hit menu button till menu appears and the rest is fairly straight forward.

Simple to use.

This splitter works great.! It was easy to setup and the remote is easy to use. There are many options for viewing. I have has this out in a barn with very cold temperatures without any issues. Great price and shipped quickly.

A Great little Device

This splitter works very well to display quad or other configurations on a cctv monitor. The instructions are a must read, they come default in the PAL so that must be changed before use in the U. S. I don't think they will work with HD cameras but I have not tried that yet.

Does a nice job displaying four video inputs on one screen

We have video signals coming from four different rooms to a single video monitor screen. With this device, we're able to have each video stream occupy one quarter of the screen. It works well. I wish that the red and green lights on the front weren't so bright. I had to put black electrical tape over them.

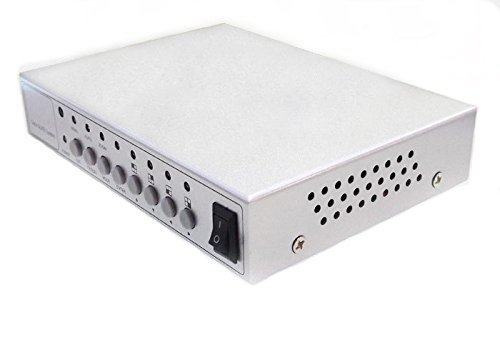

Out of the box this quad processor looks pretty good. It has a metal housing and seems ...

Out of the box this quad processor looks pretty good. It has a metal housing and seems to be well built. Naturally, four camera inputs and a pair of monitor outputs. There are eight display modes including a pair of two camera split screen modes. (Over and Under and Side by Side) The camera input and monitor outputs are all BNC. Only "problem" I had was when I first fired it up the picture was torn with wavy lines through it. Found the system format is defaulted for PAL. Naturally, changing to NTSC solved that little issue. So far so good. If I encounter issues I will update

So many options!

Has so many options and I love that it maintains it's settings if power is lost!

Good deal

I bought a second quad splitter to add cameras. This one outputs to my tv, but my other VideoSecu doesn't, and I can't remember if it ever did. I like what it does for so little $$$

So Far, So Good

I haven't put this into full use yet, but my prelim work tells me that this will be perfect for what I wanted it to do!
