Features:

  • The Board lead to all the I/O resources.

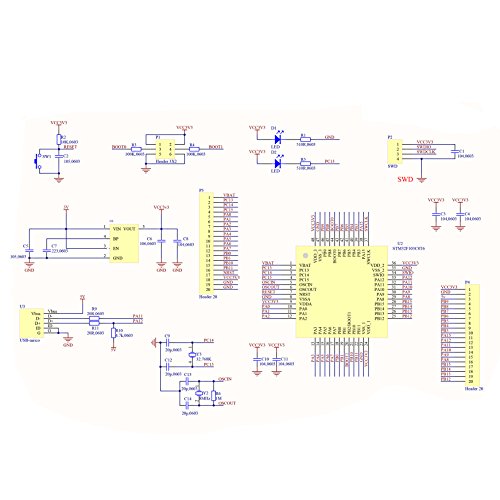

  • Board of MCU-based basic circuits, such as a crystal oscillator circuit, USB interface and USB power management circuits, and so on.
  • Use the current smart phones of Mirco USB interface, easy to use, USB communication and power supply can be done.

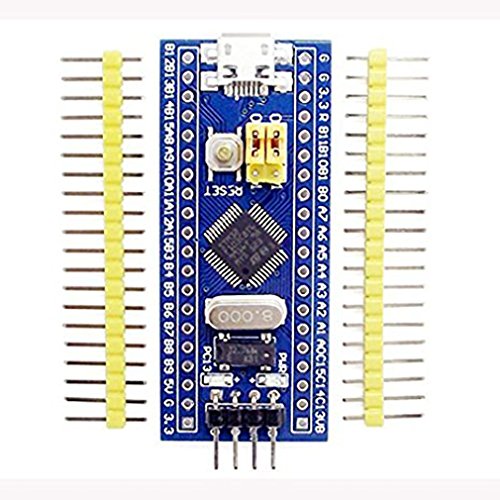

  • Equipped with high quality 1*40/2.54mm spacing of single rows of pins, ensuring excellent conductivecontact
  • Download with SWD debug interface, which requires a minimum of 3 wires to complete debug a download task
Key Component in QuadCopter Project

I'm attempting to build a quadcopter from scratch, including the flight controller. I will be using code developed by someone else & enhancing it to meet my needs. I originally thought using an Arduino UNO would be the right hardware, but it turns out to be too slow. I discovered this board while watching some videos & it was easy to see it would be a better choice: 32 bit & a 72 mhz clock speed. There are enough 5 volt tolerant pins to use this board with a 3 cell LiPo battery & the appropriate voltage regulator. Sometimes referred to as the 'Blue Pill', there is significant discussion about it on the Internet. There is a development Add-In for the Arduino IDE, so you can work in a familiar environment. There is also another Open Source IDE, which will allow you to work @ a lower level, which, of course can provide a faster solution. Bottom Line....I hope to use this board for other projects.

Very nice board for under 10 dollars

Very nice board for under 10 dollars

I used ST's Demonstrator utility for Windows and a CP2102 ...

I used ST's Demonstrator utility for Windows and a CP2102 device in order to flash over 56kb to the chip.

... it into a Black Magic Probe and it worked great.

I bought this unit to flash it into a Black Magic Probe and it worked great.

It's such an awesome product in a small useful package

It's such an awesome product in a small useful package. I am using a Mac, and I flashed it using an FTDI Serial to USB adaptor in conjunction with the Arduino IDE. If you follow the guides online, it works great, and a lot of the Arduino libraries work out of the box.

STM32 MUCs are great. Cortex M3 is much more powerful than any ...

STM32 MUCs are great. Cortex M3 is much more powerful than any flavor of Arduino. Easily programmed with ST-Link. Very happy with the purchase.

Five Stars

Works as advertised.

Board worked for a short moment then shorted out on ...

Board worked for a short moment then shorted out on me. I am giving a positive review because seller had reached out to me to correct the issue. I have already purchased a second board that works flawlessly.

Five Stars

works great, I will use this processor for my future projects. Thanks.
