Features:

  • Built in fuse socket with included 30A blade fuse with heavy duty 14AWG wires for main contact.
  • Bosch style 4-Pin SPST (Single Pole Single Throw) Relay.
  • 12VDC (14V Max) and 30A High Switching Capability.

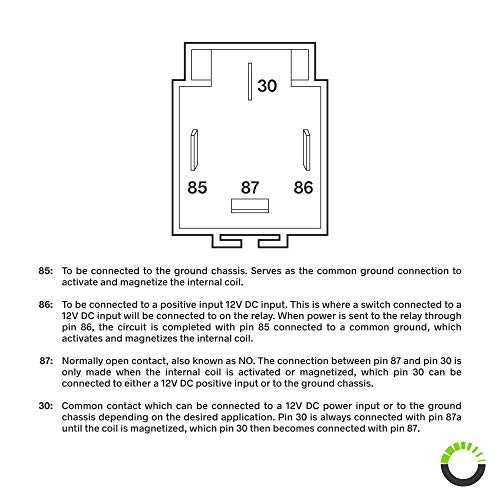

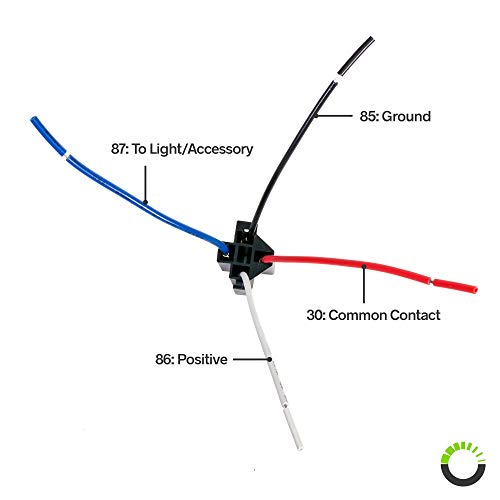

  • Wire Specifications: Black - Ground (85), Red - VDC (30), White - Trigger (86), Blue - Output N/O (87).
  • Set includes 6 relays, 6 relay harnesses, and 6 blade fuses.
Better than in-store fan relay kits

I had a mechanical clutched cooling fan go out on me and throw part of the fin into the radiator. I decided to use the opportunity to switch to an electric fan. The relay kit I originally bought was over $25 and later developed some internal wiring issue that could not be rectivied since the relay base was not designed to be serviceable. Eventually i decided to just wire in a standard relay and ditch the kit solution. I came across these and was impressed. the relays are interchangeable and the built-in fuse is convenient for reduction of wiring. Upon completion, I tried it out and got a nice loud and solid "CLICK" as the relay engaged. Sounds like its got good contact internally. This gives me a much more warm fuzzy feeling than the weak click of the old fan conversion kit relay. Best of all I got a box of six of these so if anything goes wrong, I have a replacement or extras for future car mods. :)

These work excellently

High quality for a great price. Everything you need for a tidy wiring job. Rewired my Fuel Pump and flex fuel sensor using these.

Work Great

Shipped quickly and was as advertised. Worked great om my Tacoma and allowed me to add auxiliary lights without having to add an additional fuse panel. Used 3 so I have 3 back-ups. I would recommend purchasing some fuse taps so you can tap into existing fuses for control of the relays. This way you can wire it into the ignition circuit and the lights will go off when you turn the vehicle off. Directions could be a little clearer but I was able to figure it out with little difficulty. Would definitely recommend.

works for me

I bought few of these 30amps with fuses 30amps with out fuses, 60 and 80 amps to install in my drag truck making it a street weekend truck. Cheaper buying them here than going to local parts store. I have 4 ground wires going to the body in different location. Power items - dual fans, water pump, fuel pump, transmission cooler mounted under the truck. All is on a ground wire coming off grounded wire - not like most people will just ground a item to the body. I like to make sure I have a very good ground. Also like to make sure when the truck is running at idle I have14 volts inside the truck cab at the ignition switch and power going out of it. The switches work for me no problem with any

Relay + Fuse = Winning Combination!

These are GREAT! Used for a sub-circuit switch and feed. Like the fusing capability. But make sure if you change the fuse value/or replace to press the fuse fully in. Spent a while debugging my wiring because I did not press the fuse fully home. A "duh" moment if you please. But other than that, working like a charm. Recommended.

Worth the money nice relays durable easy to install

Nice relays secure metal mounting hole easily removed fuse ... I like how you can snap them together and see if the fuse is popped without removing it definitly helped keep 15 relays looking clean and professional and kinda helps less expeianced people get a pro look

Relay must be mounted as close to battery as possible...

The included 30 amp fuses are UL listed (good) but may not be the correct rating you need. 30 amps is just the maximum for the relay... Which will protect this relay and not your electronic equipment. I removed the 30amp and installed a 7.5 amp that was recommended for my LED lights. Using a fuse that is too big for your circuit could cause a fire. Also, mount this relay as close to the battery as possible. The length of wire between the battery and relay is not protected unless you add another fuse close to the battery.

Seem good

I have never seen relays with a fuse on them before. Save lots of time and space. Have only used one on my Chevy truck to make all my lights come on with high beams. I have a project that I’m going to use them on. I only wish they had ones that have both n/o and n/c

These are well made and you get a lot for ...

These are well made and you get a lot for your money. I don't think you can go wrong with these. Others are twice to three times the price. I was very plesantly suprised when they arrived.

2017 JKU Auxiliary lights

I ordered these to wire up auxiliary lights in my 2017 JKU. In case you are a Jeep fan they fit perfectly under the steering wheel. (as pictured) Interlocking design makes securing them a snap. Probably the best relay system I have ever used to be honest. I can't think of anything else that would improve this product. It's awesome. I used in conjunction with the Rugged ridge lower switch panal.

Full Reviews
