Features:

  • 16-volt, 30VA doorbell transformer for powering up to three hardwired chimes or modern smart video doorbells
  • Thermal cut-off switch offers an extra layer of safety, shutting off power in the event of excessive temperature. UL Certified.
  • Quick and easy installation: simply mount to electical box via threaded connector or screw down
  • Eliminate issues caused by underpowered transformers: a lack of power, connection issues, low quality video resolution, and low chime volume may be an indicator of an underpowered transformer

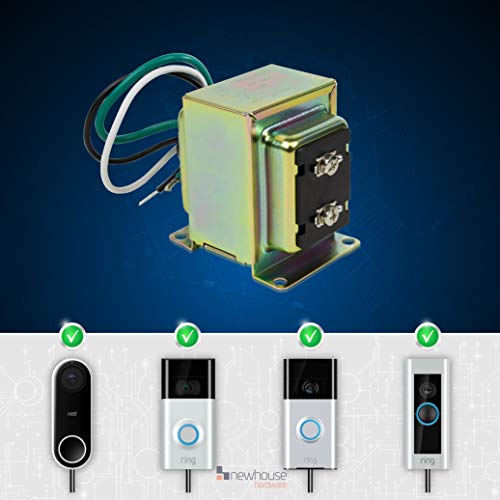

  • Compatible with RingVideo Doorbell Pro, Nest Hello, Nest thermostats, Zmodo Smart Greet WiFi Doorbell, SkyBell Doorbell, and more. Brands mentioned for compatibility information only.
  • Input voltage: 120 Vac, 60Hz | Output voltage: 16 Vac at 30VA
  • Backed by a two year manufacturer warranty
Solves Nest door bell power issue

Solved the power problem with my Nest door bell, which was not getting enough juice.

Powers my Mechnical Door Chime and Ring

Power is sufficient to power both a mechanical door chime and a Ring video doorbell button. This transformer can be mounted to the side of an electrical utility box (This is probably the preferred way.) or it can be attached to wood structure such as studs or joists.

Perfect Solution

After installing my Ring Video Doorbell I noticed a slow-down in the doorbell video function. I checked online and the recommendation was to install a higher-powered transformer. It worked like a charm. Not only does the video doorbell work perfectly along with my old door chime but the exterior address light which has not worked in 30 years now works.

16 volt doorbell transformer measures 21 volts

This is supposed to be 16v, a VOM tests it at over 21 volts. Fortunately it worked well with the Zenith chime I bought. The Newhouse chime I originally tried to use would not work right. Tone was terrible and the sound was weak.

Nest video doorbell fixer

Puts out a steady 17.6V to power my Nest. Easy install if you're comfortable working inside the panel.

Well Made

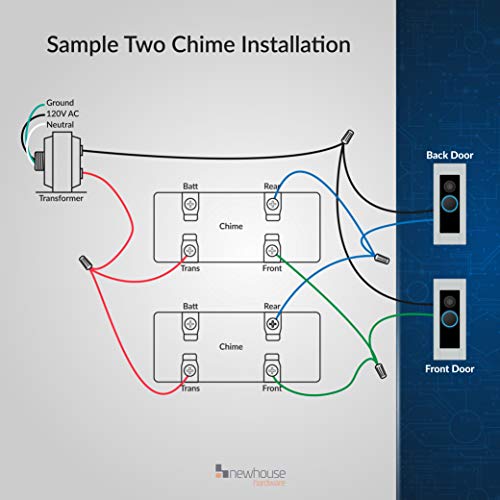

I'm using this to power two doorbells, one on the main floor, and one in the basement, that operate off a single button at the front door. At first I thought I needed a transformer with increased voltage, but Nutone (doorbell maker) says to increase the amperage, not the voltage. My old transformer was 20Va, this one is 30. Both bells now ring properly.

WiFi doorbell

Works great with RCA doorbell camera

It works

I use this type transformer for my customers that don't have a doorbell that want a smart doorbell. I use a old work box drill a hole on the side for the transformer that has a screw to attach it to the box, splice all my high voltage inside the box with low voltage wiring up to the bell. Can't get better than that

Good item for the cost, works with Ring Pro

I have this transformer with a Ring Pro & it works perfect, shows 4280mv - per instructions the Ring Pro requires 3900mv minimum potential. No-load shows 20.3 VAC & the range should be 18 to 22 VAC, anything less than 18VAC (no-load) is due for replacement, IMHO............ I did find sub-par wiring in my installation but corrected it - minimum wire size is 20 gauge for the new chime per manufacturer, mine was 24 gauge telephone wire : (24/6 or 3 pairs). I used all new components & new wire is 18/2, except some of the inaccessible old wire, but fixed that by tying 3 into 1 at each connection.

Fixes mechanical doorbell with Nest Hello

Not hard to replace the old transformer. This one fixed my mechanical doorbell from not ringing with the Google Best Hello. Now it has more than enough power.
