Features:

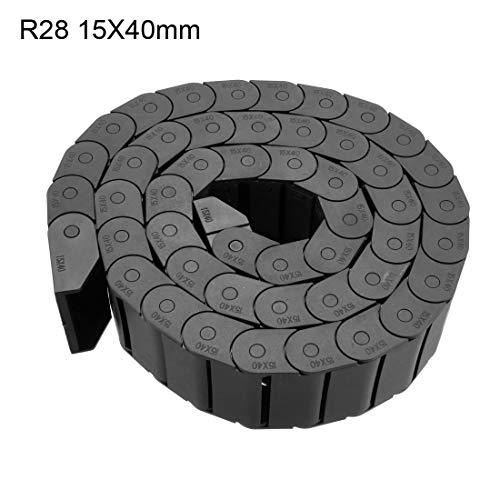

  • Type: Openable; Bending radius: R28;
  • Internal Size: 15mmx40mm (Inner HxInner W); Length: 1 Meter/3.28 Ft
  • Change Size: You could link the cables with each other to form one long length you need.
  • The drag chain has been widely used in CNC machine tools, electronic equipment, glass machinery, doors and windows machinery, injection molding machines, robots, automated warehouses and so on.

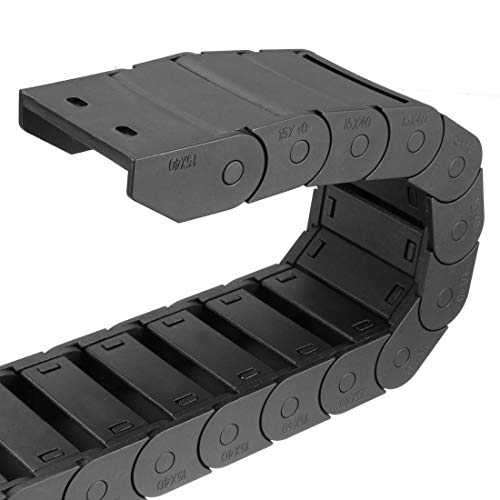

  • NOTE: When the moving terminal is bent as "U" shape, the longer part will lay flat. Or the tail of the chain will bend upward.
I like this chain

I am running 5x8mm Silicon flex tube and a pair of 28ga wires through this chain to the head of a Chinese K40 laser with room to spare. The minimum circumference of this chain in a 180 degree turn is great and is no issue in a small area like this.

this gives a near equivalent (for some applications) at a good price. It is worth the cost

Cable chain. What's to say? It's well made, the links do not open so you have to route cables through, not lay them in, but that's what you get at this price. It is small in cross section obviously. When using, be sure to tie down the cables at both ends and lay them flat not twisted and with no overlap, that increases cable life. Of course it obviously decreases how many cables you can fit in the cable chain. You can remove links to fit length, of course. The end links can be flipped around to mount to the other side. If you do this though it won't pivot quite the same. My personal advice if you have to flip one around is the same as normal, support the first 3-4 links at both ends anyway if you can, instead of just supporting the end link, it helps with longer runs and heavier cables. You will get droop over longer runs, expect that. And on up sides to horizontal runs there is a bow, though over time and with cable weight it goes away. Minimum inner bend radius for me was about 32-35mm, I don't know where the number in the product info came from but it is not true, at least on the unit I received. The next size up of the cable chain from uxcell does have a tighter bend radius so I think it is a product information error. Given cable chain for industrial usage can be pricey, this gives a near equivalent (for some applications) at a good price. It is worth the cost.

Would make Lee Majors proud

I could have 3D printed a chain, but these are better, stronger, faster (flash to the 70s) than I could make, especially at this price.

top quality

Worked well on home made cnc maching

This is a great cable chain

This is a great cable chain, Holds all the cables for a dual extruder plus three fan wire sets. They hold together well and do not pop apart like some others. You can even buy more than one and join them together. I have told my friends, and I plan to buy more of a smaller size for other runs on my 3D printer. Great buy!!! OH almost forgot to say that the product came a day early and in the morning.

Saves wear and tear of sensitive cables!

I used this as the drag chain for the bed of my 3d printer, where there are thicker cables than the upper motors (where I used a different drag chain). My printer was woefully incomplete without both sets - combined they make the printer run smoother, and save the cables from wear and tear.

Great product

really well made , no issues I was able to modify to use it with my project

Very well made material

This product is first rate quality very well made they did not skimp on the material or quality.

lightweight, inexpensive, and useful

These drag chains are great for custom projects. Easy to adjust the length and end stops can be trimmed with a box-knife. The 3 meter length this comes in is good for about a 5 foot run (assuming you maximize the overlap utilization).

Worthy drag-chain

It works! Used some mounts to put it on my RailCore II 300ZL and it keeps all my wiring nicely tucked away.
