Features:

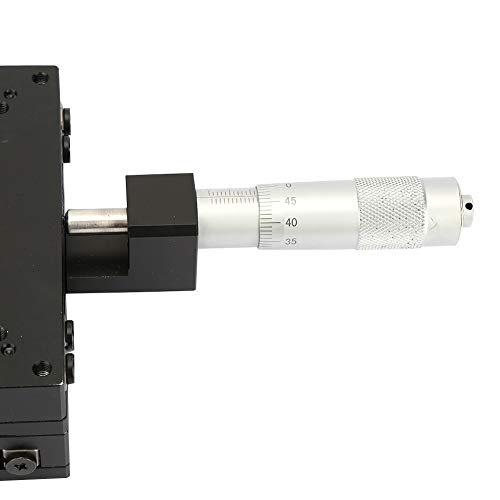

  • ▶XY AXIS PRECISION MANUAL FINE-TUNING PLATFORM◀ fine-tuning the sliding table, manual and precise adjustment of the registration, used for high-precision production and processing products. Micrometer level adjustment sliding table with an accuracy of 0.01mm.

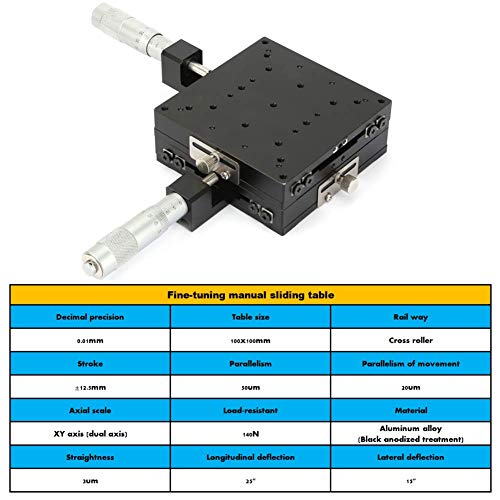

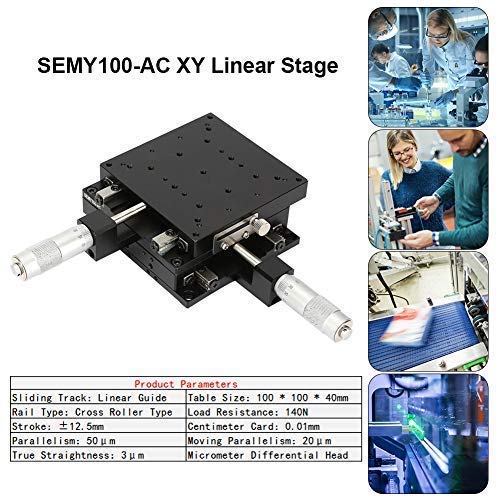

  • ▶SLIDING TABLE PARAMETERS◀ XY-axis dual-axis micrometer displacement platform, stroke: ±12.5mm; load resistance: 140N; parallelism: 50μm; moving parallelism: 20μm; straightness: 3μm.

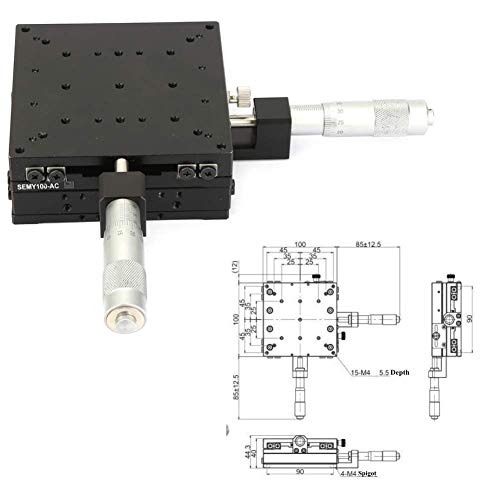

  • ▶SLIDING TABLE SIZE◀ sliding table surface size: 100x100mm; overall appearance size: product external size: 205x212x45mm.

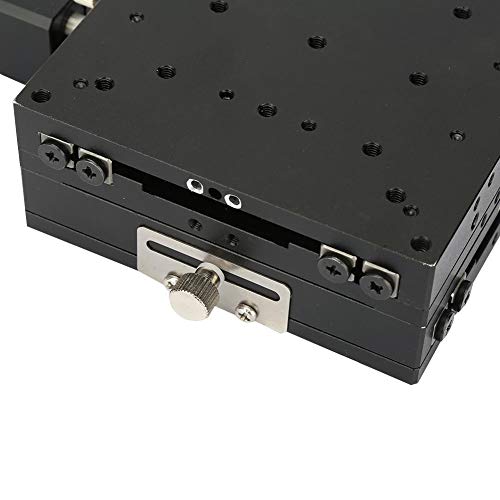

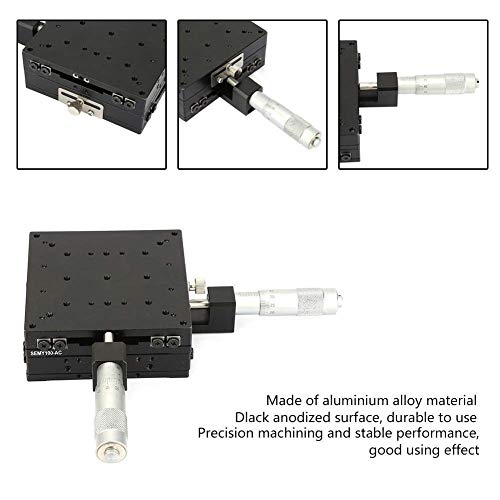

  • ▶SLIDE TABLE MATERIAL◀ aluminum alloy (black anodized), corrosion-resistant to ensure high precision.Sliding Table Sliding Method sliding track: linear guide rail; guide rail type: cross roller type
  • ▶APPLICATION◀ Laboratory precision testing, mechanical equipment positioning and movement, various fiber coupling, optical waveguide alignment, core alignment, packaging systems, capacitive touch screen production equipment, tooling fixtures, optical instrument devices, non-standard equipment
