Features:

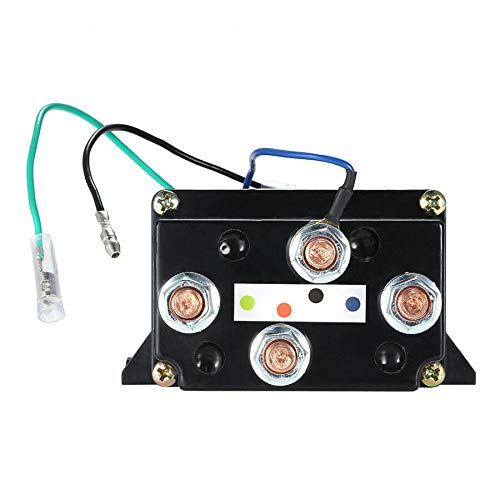

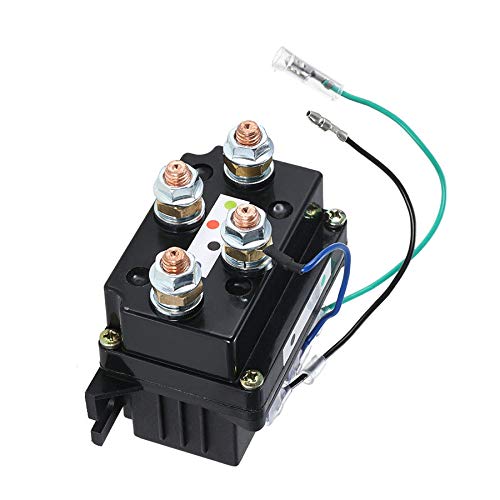

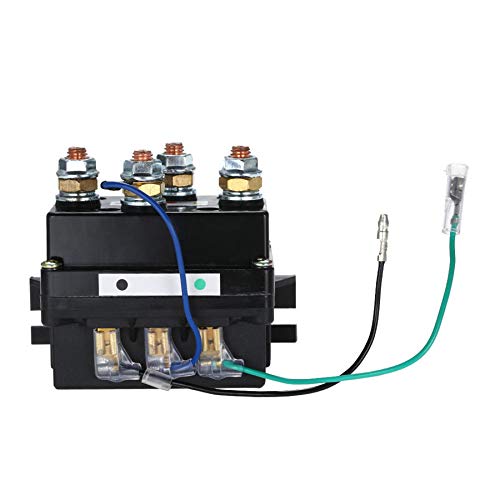

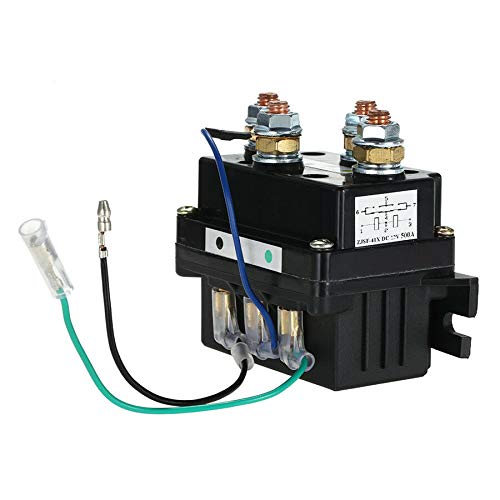

  • Solenoids are electromagnetic switches. The winch solenoid is used to activate the winch motor on a vehicle-mounted winch. It is designed to supply the required current without damaging the winch motor or the winch switch.
  • It is activated when current from the battery is directed to the solenoid by pressing the switch of activation. The activation of the winch solenoid sends current to the motor. Then the winch motor begins to run the winch drum. The typical winch uses separate winch solenoids for reverse and forward. Best quality winches use four winch solenoids.

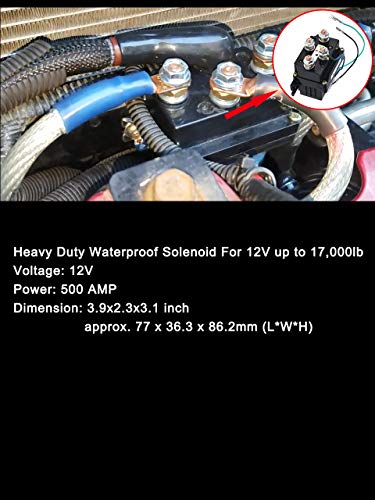

  • This solenoid relay could be applicable for Winch Motors, Snow Plow & Spreader Motors, Windlasses, Hydraulic Pump Motors & Other Reversible Motors, etc. Heavy Duty Waterproof Solenoid For 12V up to 17,000lb.Voltage:12V, Power: 500 AMP, Dimension:3.9x2.3x3.1 inch/ approx. 77 x 36.3 x 86.2mm (L*W*H).

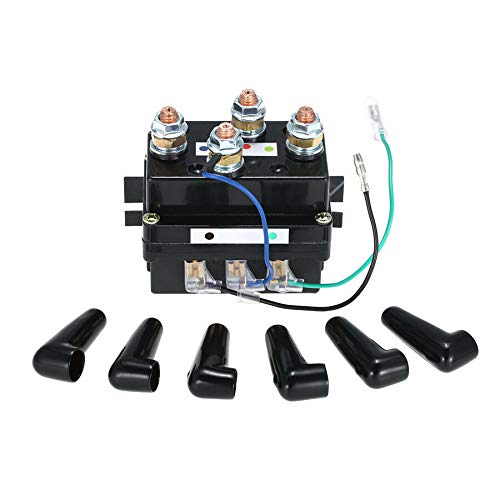

  • Package includes: 1 x Winch Solenoid Relay Contactor,6 x Protecting Caps.
  • Latest heavy duty model by larger contact faces; Improve Safety And Reliability By Upgrading From The 'Twin Can' Solenoids Found On Many Budget Fully Waterproof Sealed Case; Heavy Duty M8 Primary Connection Posts; Mounting Bracket Pre-Fitted For Easy Installation Into Your Control Box; Compatable With Wireless Remote Systems.
GREAT SOLENOID FOR WINCH UPGRADE

I replaced the 2 old canister style solenoids in the control box for my MileMarker 12000lb winch. This is a fantastic replacement / upgrade solenoid for any winch! Top connections from right to left are: Yellow winch terminal Red winch terminal Positive to battery Black winch terminal Front spade connections are: Left and right; in and out from switch / remote. Center is ground / negative Please note: the "jumper wire" that came on the solenoid was NOT correct for MY application and had to be removed. You'll also notice, the power wire from that top connection going to my switch / remote. My winch is from 2001, newer winches may be wired differently. This is a great product!

Has the power.

Very strong worked great for pulling us out.

Good for x2o by smittybuilt 10000

This relay fit my 10000 lbs X20 BY SMITTYBUILT winch. I fix in 20 minutes. Do not use the diagram in the box, take a picture of the old one and use that setting
